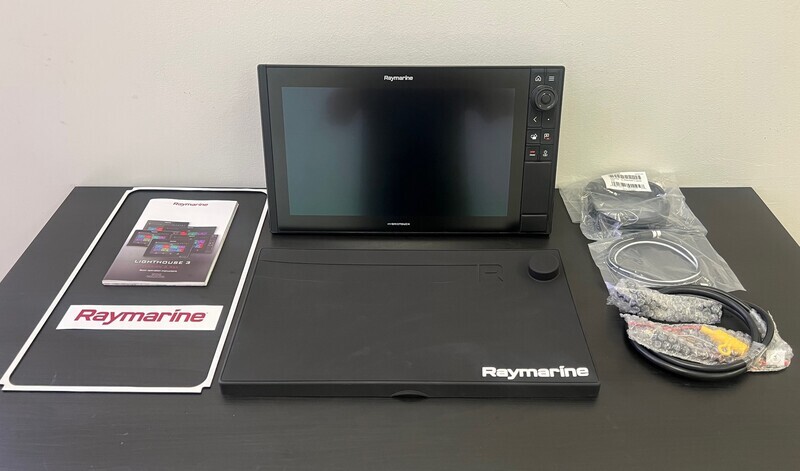

Raymarine Axiom Pro 16" RVX Multifunction Display E70373
Product Description
Raymarine Axiom Pro 16" RVX Multifunction Display E70373
xiom Pro 16 RVX MFD with RealVision 3D & 1kW CHIRP Sonar With RealVision 3D and 1kW CHIRP Sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices.
Specifications:
- Screen Size: 15.6"
- Display Resolution: 1920 x 1080
- Screen Type: Super bright IPS display with optical bonding. Multitouch support
- Mounting Options: Front
- Waterproofing: IPX6 / IPX7
- Memory: 16GB Internal / x2 microSDXC slots
- USB: 1 x USB microAB (rear – charging, external storage device or RCR-SD/USB Accessory (A80440)
- Voltage: 12 / 24 V dc
- Weight: 6.25lbs / 2.84kg
- Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF)
Wi-Fi
- Ethernet: 2 x 10/100 Mbits/ Network (RayNet)
- NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
Radar Compatible
- Thermal Night Vision Compatible
- Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras
- Built-in Sonar: RealVision 3D and 1kW CHIRP Sonar Built-In – RVX Models Only
- External Sonar Compatible
- GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou – 10Hz 167 Channel | External Accessory: GA150 (A80288)
