KVH 01 0418 11 TracPhone V3 HTS Marine Fleet Broadband Satellite Antenna

Price:

$6,320.00

SKU:

GM00251

Brand:

KVH

Condition:

Used

Availability:

In Stock

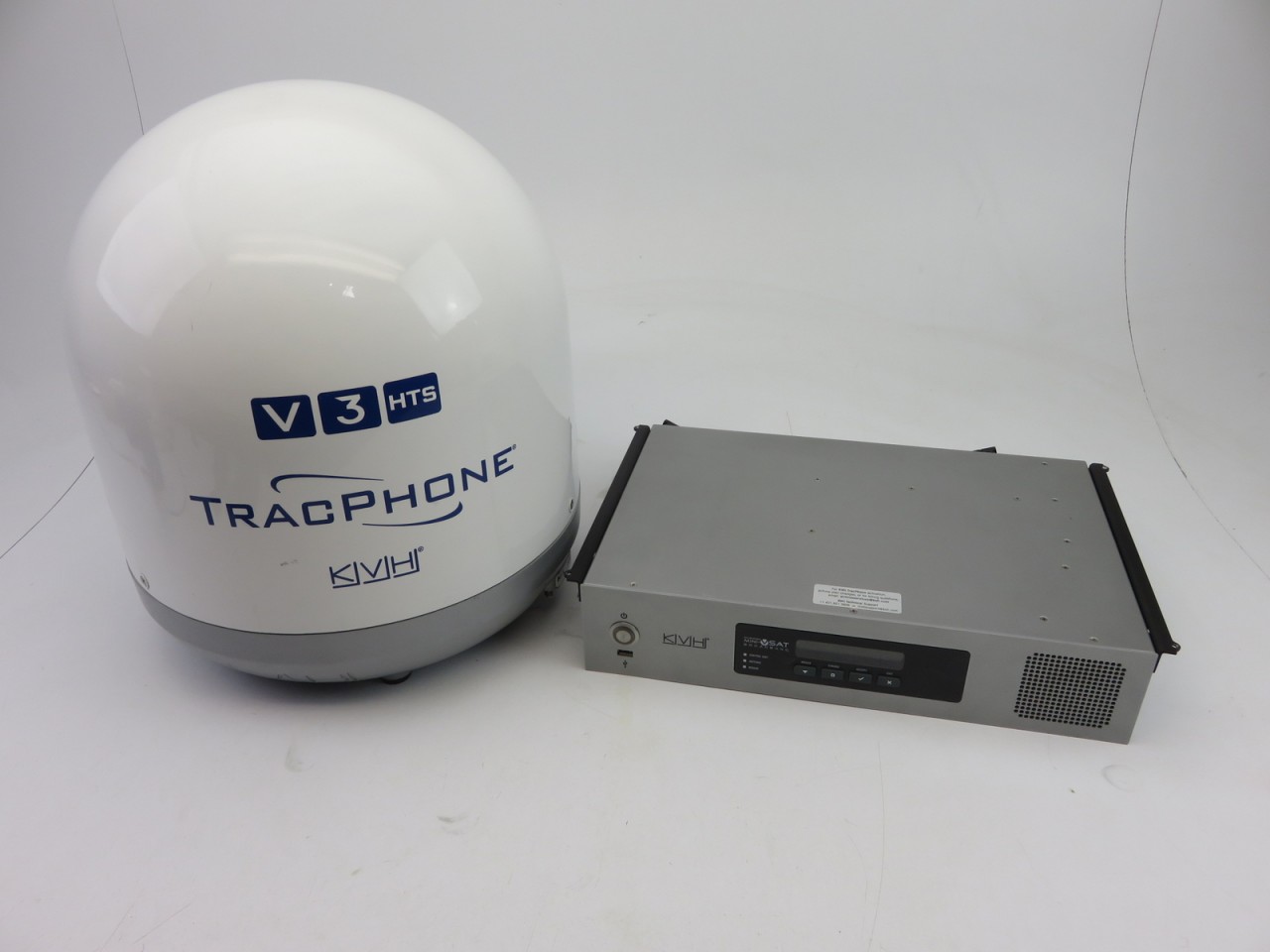

KVH 01-0418-11 TracPhone V3-HTS Marine Fleet Broadband Satellite Antenna System

Service Specifications:

Antenna Specifications:

Antenna Dish Diameter: 368 mm (14.5")
Antenna Unit Power: DC; provided by ICM
Elevation/Azimuth Range: 7.7° to 75°/720° Rotation
Heading Input: NMEA 0183 Magnetic or True Heading
ICM to Antenna Unit Communications: 14 Conductor Data Cable
Humidity: IEC 60945; 40°C (104°F), 95% Humidity (non-condensing)
Rain: Precipitation rate of 1.7 mm/min, w/wind speeds up to 100 knots
Antenna Unit Dimensions/Weight: 394mm X 447mm (15.5" D x 17.6" h)/11.3 kg (25 lbs)
Temperature: Operating: -30°C to 55°C (-22°F to 131°F); Survival: -35°C to 70°C (-31°F to 158°F)

Integrated CommBox Modem (ICM) Specifications:

Weight: 5.1 kg (11.25 lbs)
Voice Interfaces: 1 RJ11 port for VoIP services
Dimensions: 426 mm X 414 mm X 2U h (16.8" X 16.3" X 2U)
Input Power: 100-240 VAC, 50-60 Hz Auto Switching, 250W Maximum
Temperature: Operating: -15°C to 55°C (5°F to 131°F); Survival: -15°C to 70°C (5°F to 158°F)
Data Interface: 4 Ethernet: IEEE 802.3 10BASE-T/100BASE-TX, 100 Mbps; 1 Wi-Fi 802.11; 3 USB ports
